Description
UVC20CAM-IMX378
Description:

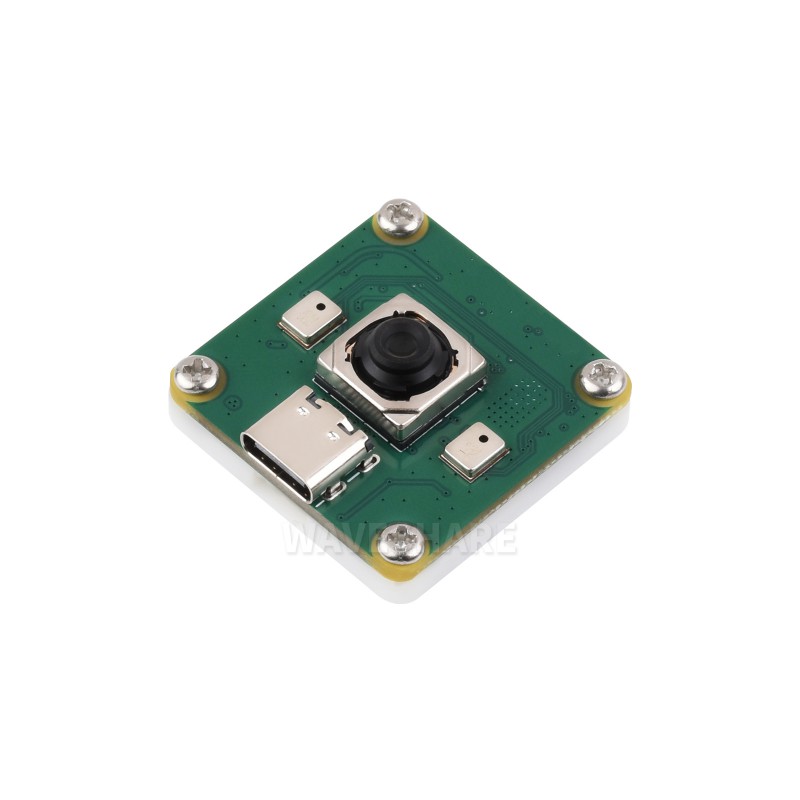

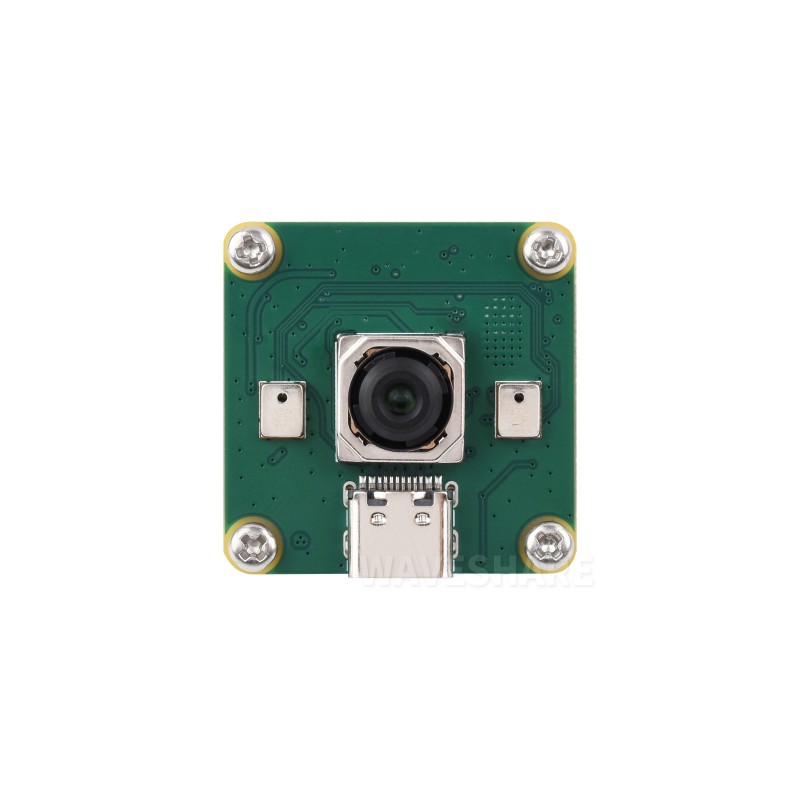

- IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones
- 12MP | USB Type-C port | 79.8° FOV | Dual Microphones
- Compatible with Raspberry PI, Jetson Nano, Jeston Orin Nano, Beaglebone Black, Beagleboard,PC,Computers,Phones,Pads with UVC drivers.
Specifications
| Pixels | 12MP | |
|---|---|---|
| Sensor | IMX378 | |
| Interface | USB2.0 Type-C | |
| Camera | Sensor size | 1/2.3 inch |
| Aperture (F) | 1.79 | |
| Focal length (EFL) | 4.7mm | |
| Field of view (FOV) | 79.8° | |
| Distortion | <0.39% | |
| Focusing | Auto-focus | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 3840 × 3032 | |
| Video recording | 30 FPS 3840 × 3032 30 FPS 3840 × 2160 30 FPS 2592 × 1944 |
|
| Audio | Onboard dual microphones | |
| Operating voltage | 5V ± 5% | |
| operating temperature | 0°C ~ 50°C | |
| Module size | 30.00 × 30.00 (mm) | |
Features
- Connecting with USB cable
- 12MP High resolution:Supports 30 FPS output, suitable for capturing details
-
Distortion-Free: Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes
- Onboard two types of connectors: Connecting via USB Type-C port, Connecting via 1.0mm pitch 4PIN connector
Outline dimensions
Packing List
- IMX378 12MP USB Camera (A) x1
- SH1.0 4PIN dual plug cable x1
- USB-C Cable x1
